BEEB   Removable steel/bronze guide bush

— Technical specifications
Product Code: BEEB

Material: Steel 1.7131 + Bronze

Heat treatment: Cementing + Hardening

Hardness: Hrc 61 ÷ 63


— Scroll right to read

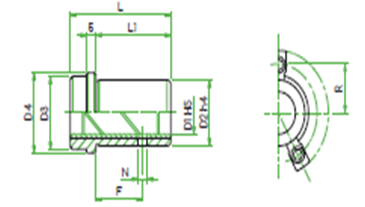

TIPO CORTO C
D1 L D2 D3 D4 L1 R N F
18-19 31 28 29 34 18 21 5 8
24-25 36 38 39 44 23 26 5 12
30-32 43 45 48 53 30 31,5 5 16
40-42 51 54 58 63 38 36,5 8 19
50-52 61 65 74 79 48 44,5 8 19
63 74 81 87 92 61 51 8 19
80 91 100 106 111 78 60,5 8 19

TIPO EXTRA MEDIO XM
D1 L D2 D3 D4 L1 R N F
18-19 50 28 29 34 37 21 5 8
24-25 55 38 39 44 42 26 5 12
30-32 60 45 48 53 47 31,5 5 16
40-42 67 54 58 63 54 36,5 8 19
50-52 75 65 74 79 62 44,5 8 19
63 90 81 87 92 77 51 8 19
— Photo Gallery

Downloadable attachments

Do you want to order a mold with specific sizes?

Request your personalized mold
